Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Virgin Material Of | Thickness: | 6MM |
|---|---|---|---|
| Max Width: | 2.1M | Length: | 5.8M/11.8M |
| UV: | 50um | Guarantee: | 10 Years |
| Highlight: | uv roof sheeting,double wall polycarbonate panels |
||
INTRODUCTION OF PC SHEETS FOR SUNSHINE:
1, Standard size: Width 2100mm×Length 5800mm; size also could be ordered
2, 100% virgin /Bayer material.
3, ANTI-UV protection, 50um UV protecting layer
4, 10 years warranty.

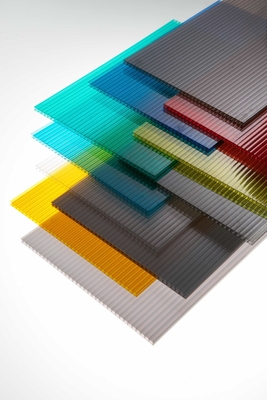

5, Color: clear, blue, lake blue, green, grass green, brown, opal, red, yellow
SPECIFICATION OF POLYCARBONATE SUNSHINE SHEETS:
| Thickness(mm) | Structure | Weight (g/sqm) |
Min. Bend Radius (mm) |
K value (W/M2K) |
| 4 | 2-layer |
850 | 700 | 4.1 |
| 5 | 1000 | 875 | 3.8 | |
| 6 | 1300 | 1050 | 3.6 | |
| 8 | 1500 | 1400 | 3.3 | |
| 10 | 1700 | 1750 | 3 | |
| 6 | 3-layer |
1400 | 1050 | 3.4 |
| 8 | 1600 | 1400 | 3.2 | |
| 10 | 1800 | 1750 | 2.7 | |
| 12 | 2100 | 2100 | 2.6 | |
| 14 | 2400 | 2450 | 2.4 | |
| 16 | 2700 | 2800 | 2.3 |
STANDARD COLOR AND LIGHT TRANSMISSION
| Thickness(mm) Color |
4 | 5 | 6 | 8 | 10 |
| Light transimission | |||||
| Clear | 80% | 78% | 76% | 74% | 72% |
| Lake Blue | 56% | 54% | 51% | 49% | 48% |
| Green | 55% | 52% | 51% | 48% | 46% |
| Grass green | 54% | 52% | 50% | 46% | 44% |
| Brown | 34% | 32% | 30% | 26% | 23% |
| Blue | 33% | 31% | 28% | 25% | 20% |
| Opal | 27% | 25% | 22% | 18% | 15% |
| Advertising white | 16% | 14% | 12% | 9% | 8% |
Technical date of PC sheets:
| Characteristics | Unit | Date |
| Light transmission | % | 91 |
| Impact strength | j/m | 850 |
| Density | g/cm2 | 1.2 |
| Flexural strength | N/mm | 2100 |
| Modulus of elasticity | Mpa | 2400 |
| Heat Conducticity | w/ m*k | 0.2 |
| Heat deflection temperature | degree | 137.3 |
| Coefficient of thermal heat expansion | Mm/m | 0.063 |
| Range of temperature | degree | -40-130 |
| Effect of sound proof | 4.5mm solid sheet | Attenuate 20db |
APPLICATION OF POLYCARBONATE SHEETS:
1, Building skylights; such as gymnasium, workshop, storehouse etc.
2, Agriculture greenhouse
3, Natatorium coverings
4, Walkway; Carport
5, Indoor partition; Folding screen
6, Furniture; Bathroom
HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonae sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.
We have 3 advanced producing line for polycarbonate sheets. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.
On 2015, we established first branch company at Bogota,Colombia, loacated at Calle 68 #22-43.
On 2016, we set another warehouse in Colombia, the address is Carrera 22#14-60,Bogota.
On 2017, we plan to set more warehouse in another city of Colombia, Such as Cali,Baranquilla.
With “quality first, best credit, clients supreme”, welcome warmly you to inquiry and visit us
