Product Details:
Payment & Shipping Terms:
|
| Name: | Solid Polycarbonate Sheet | Type: | Embossed |
|---|---|---|---|
| Thickness: | 2mm~12mm | Max Width: | 2.1m |
| Other Name: | Uv Polycarbonate Panels | Guarantee: | 10 Years |
| Highlight: | impact resistant polycarbonate sheet,uv blocking polycarbonate sheet |
||

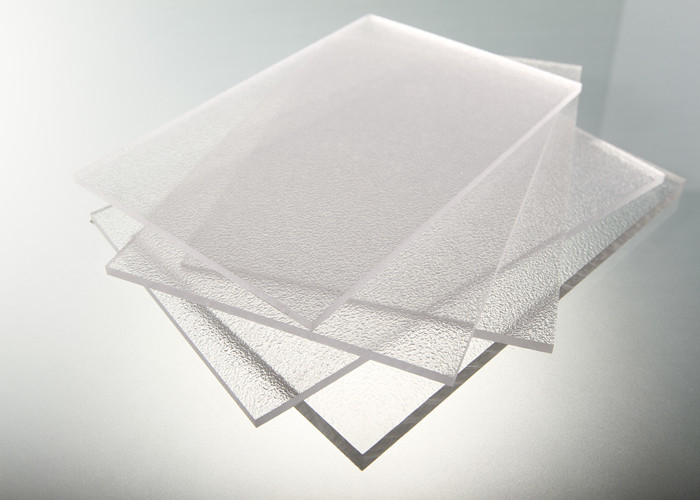

Leather Transparent Solid Polycarbonate Sheet / Uv Polycarbonate Panels
Solid Polycarbonate Sheet Detail Features:
1. Light transmission:35~80%
2. Weather resistance: The UV layer on the surface can prevent the corrosion of ultraviolet
3. Sound insulation: The hollow structure has a good sound insulation effect
4. Impact resistance: The impact resistance strength is 250 times of ordinary glass and 30 times of organic glass
5. Fire retardant: The fire retardant is regarded as Grade B2 without fir drop or poisonous gas.
6. Portability:About 1/15 of ordinary glass with the samethickness
7. Temperature resistance: Can be used in -40 to +120
8. Heat insulation: Heat conduction coefficient is lower than ordinary glass with a better heat insulation and preservation effect.
Solid Polycarbonate Sheet SPECIFICATION
| Thickness (mm) | Max Width (mm) |
Density (Kg/m³) |
Standard Length (mm) | Standard Color |
| 2 |
2100 |
1.2 |
As requested |
Clear, Frosted, Blue, Lake blue, Green, Brown, Opal, Red, Yellow
|
| 2.5 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 12 |
Solid Polycarbonate Sheet Technical data
| CHARACTERISTICS | DATA |
| Impact Strength | 850 J/m |
| Light Transmission | 89%-50% |
| UV Protection Layer | 50 um |
| Suitable temperature | -40 ~ +120 |
| Heat Deformation Temp. | 140 |
| Heat Conductivity | 2.3-2.9 W/m2 |
| Specific Heat | 1.17 KJ/KG k |
| Thermal Expansion Coefficient | 0.065 mm/m |
| Bend Strength | 100 N/mm2 |
| Tensile Strength | > 60 N/mm2 |
| Tensile Force of Breaking | > 65 N/mm2 |
| Modulus of Elasticity | 2400 MPa |
Solid Polycarbonate Sheet Features
Solid Polycarbonate Sheet Details
HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonate sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.
We have 3 advanced producing line for PC sunshine sheets and PC solid sheet. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.
On 2015, we established first branch company at Bogota,Colombia, till August,2017 we have 4 warehouse there.
